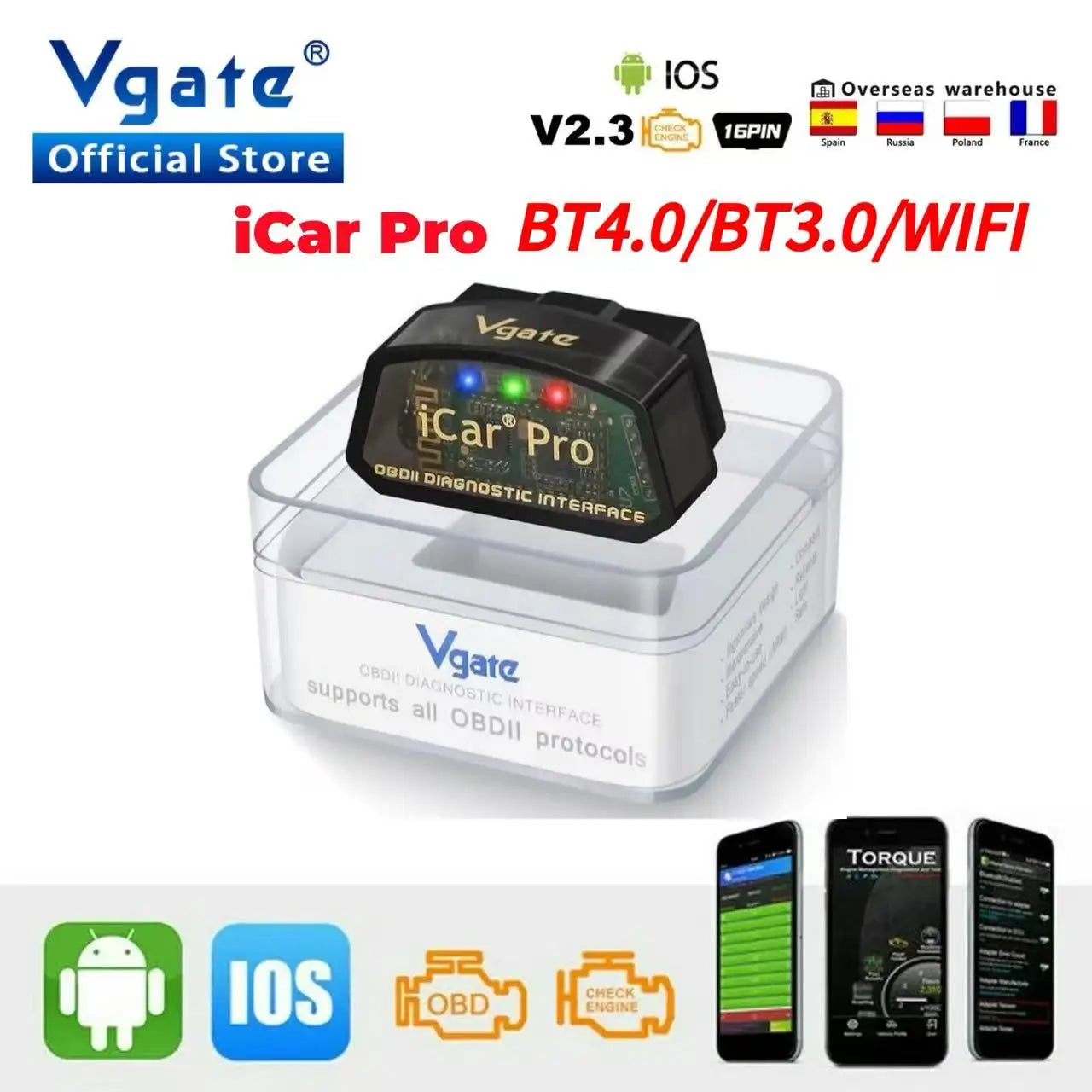

Scanner OBD2 Vgate iCar Pro ELM327 WIFI pour iOS/Android BT 4.0 BT 3.0 ELM 327 OBD 2 Outil de diagnostic automobile Lecteur de codes
Scanner OBD2 Vgate iCar Pro ELM327 WIFI pour iOS/Android BT 4.0 BT 3.0 ELM 327 OBD 2 Outil de diagnostic automobile Lecteur de codes
Impossible de charger la disponibilité du service de retrait
SPECIFICATIONS
Certification: ROHS,FCC,CE
Certification de tests externes: ce
Choice: yes
Fonctionnalités spéciales: Bluetooth
Hauteur de l'article: 5
Largeur de l'article: 10
Les piles sont-elles incluses: Non
Longueur de l'article: 15
Mise à jour du logiciel: Oui
Nom de marque: Vgate

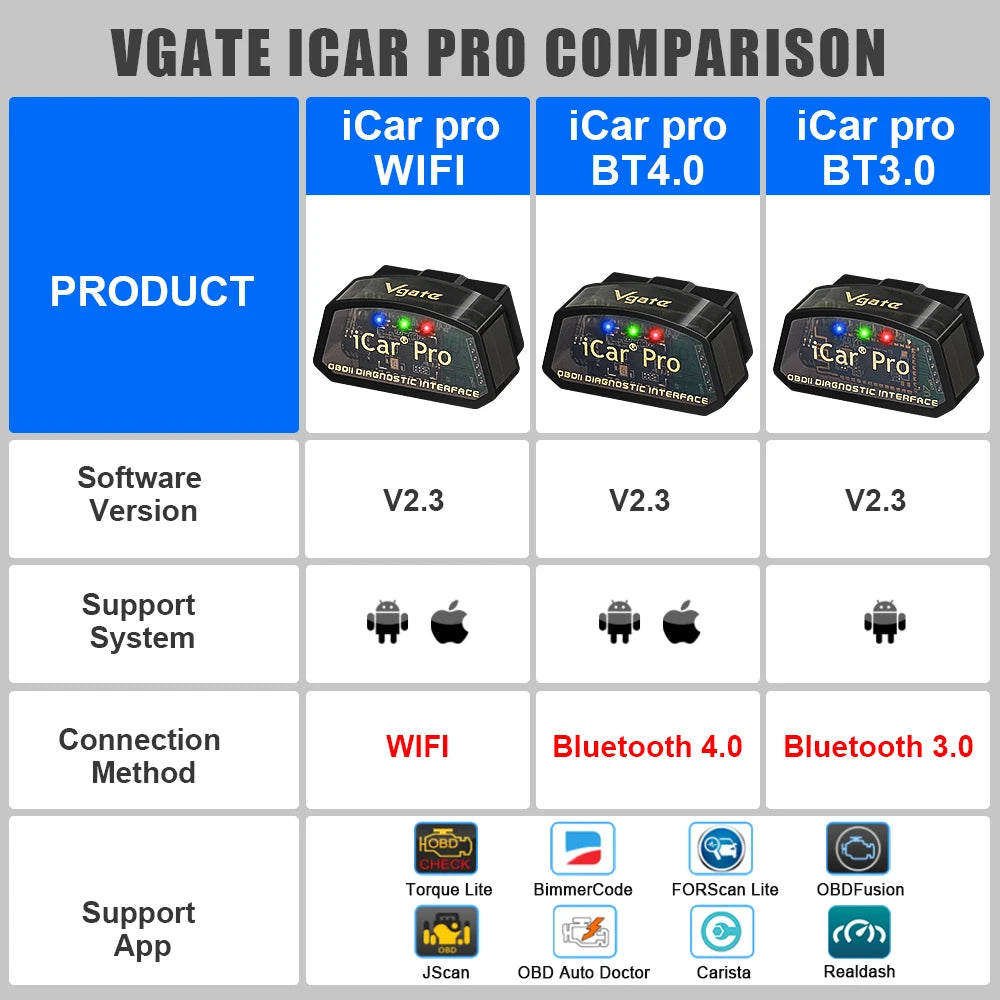

Operating System BT4.0/WIFI: for Android/IOS
Origine: CN (Origine)
Poids de l'article: 0.06
Product Name: Vgate iCar Pro elm 327 BT3.0/4.0/WIFI
Product packaging size: 15*15*5
Product weight: 0.06KG
Produit chimique à haute préoccupation: Aucun

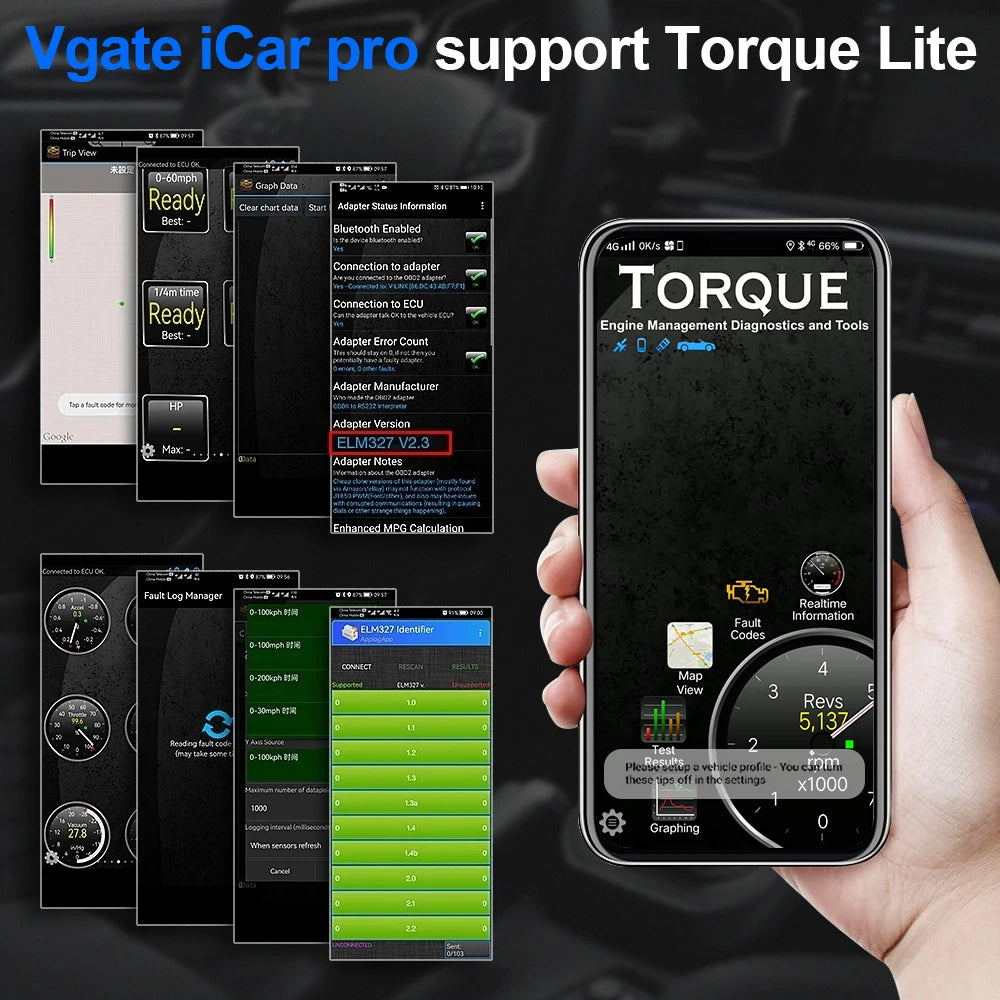

Software: For BimmerCode/Auto Doctor/Torque etc.
Special Function: Read real time data,Read/Clear DTC etc.
Type D'article: Autre
Utiliser: Pas de télécommunication
interface de communication: Bluetooth
Électronique: Non
Vgate iCar Pro ELM327 WIFI OBD2 Scanner For Android/IOS BT4.0 Elm 327 Car Diagnostic Tool scan tool OBDII Code Reader
Purchase Notes：
1.iCar Pro's firmware version has been updated to ELM327 V2.3 for all market in the world,V2.3 adds more instructions to read more data and vehicles,If you received V2.2, please contact us to upgrade to V2.3
2.Official store only sells the original iCar pro,We have Anti-piracy Software to test if is original,Please contact us to get the Anti-piracy Software,Avoid getting fake iCar pro from other stores

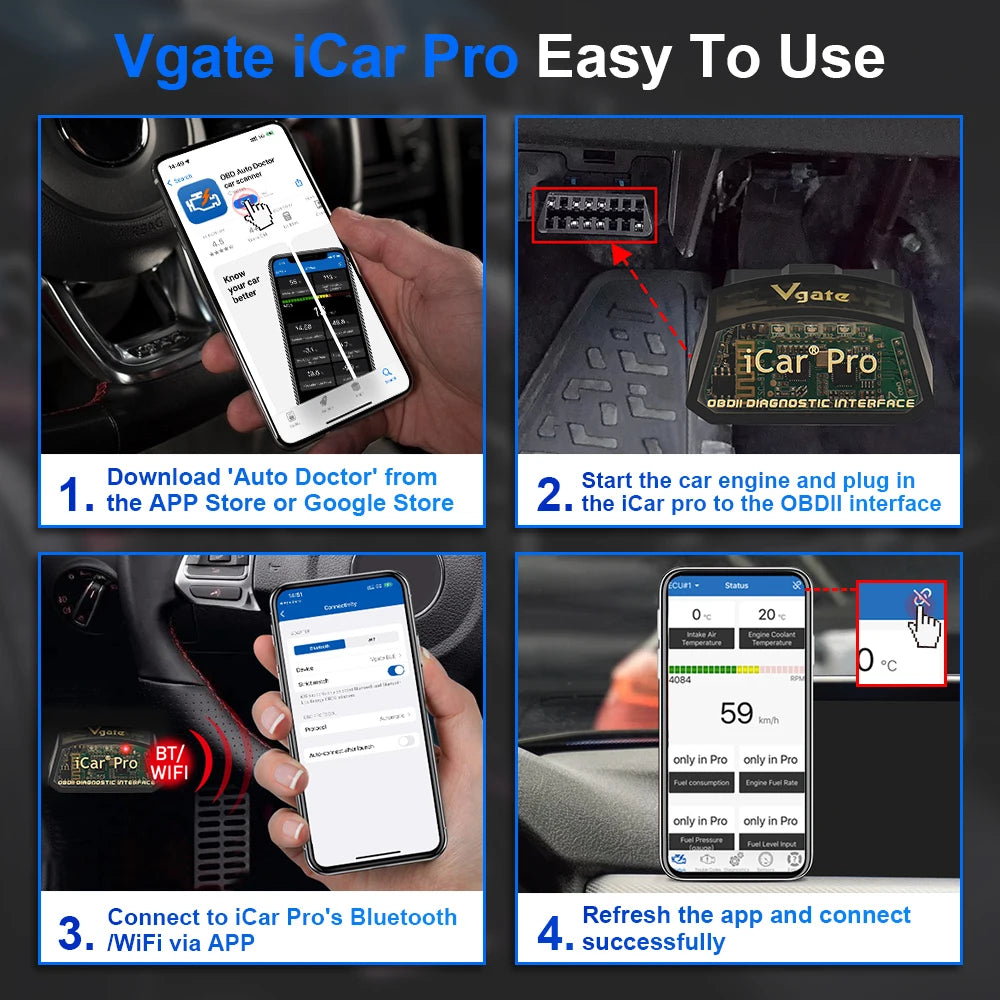

3.If your mobile phone is IOS, when you use BT4.0 Ver., please connect to BT directly in the software,Don't connect to BT in phone settings

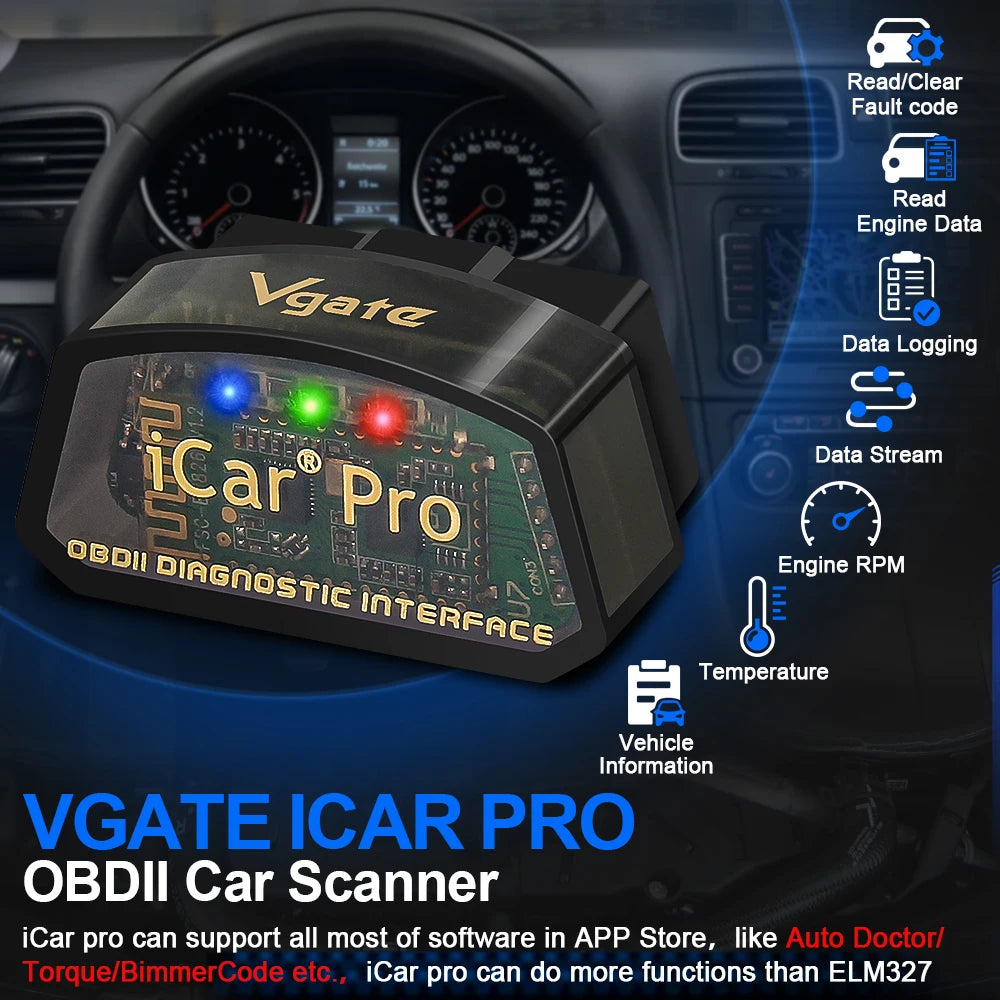

Vgate iCar Pro Features:
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning. (over 3000 generic code definitions in the database).
Clear trouble codes and turn off the MIL ("Check Engine" light)
Engine RPM
Calculated Load Value
Coolant Temperature
Fuel System Status
Vehicle Speed
Short Term Fuel Trim
Long Term Fuel Trim
Intake Manifold Pressure
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltages/associated short term fuel trims
Fuel System status
Fuel Pressure
Many othershellip

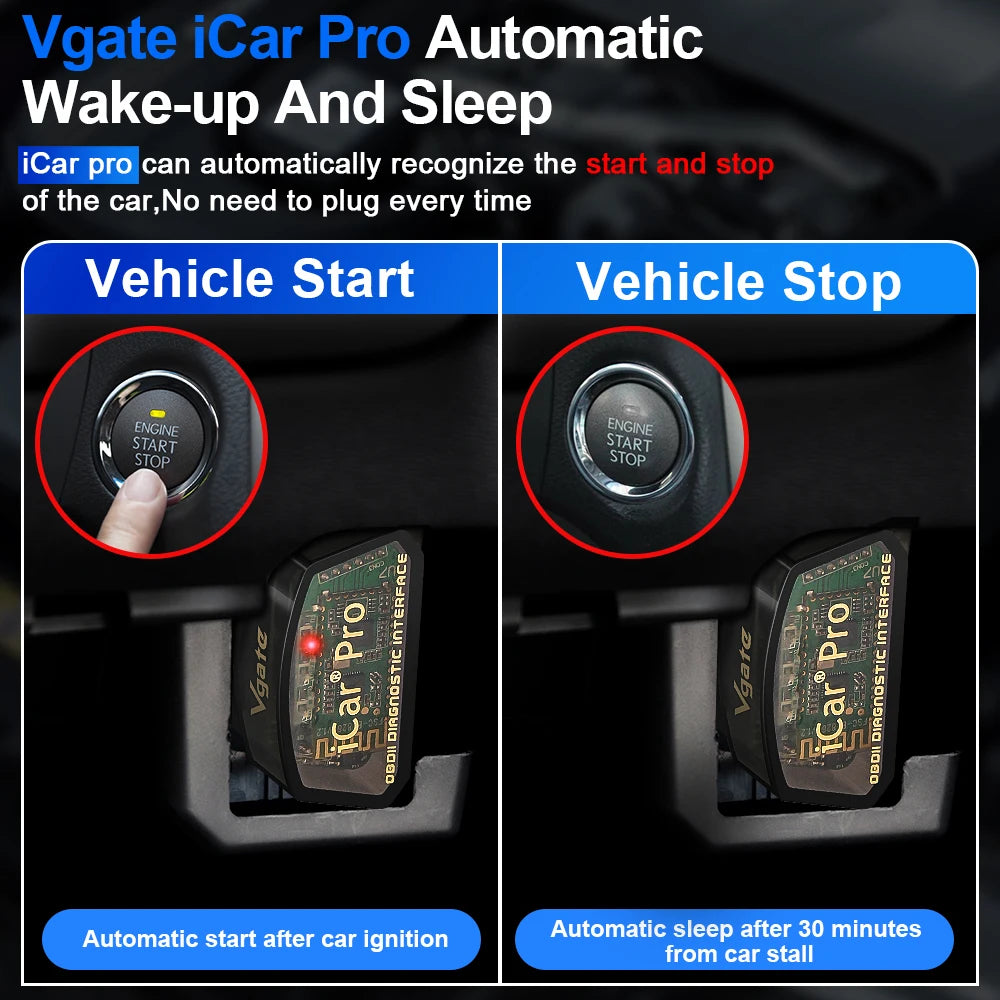

Vgate iCar Pro Support Automatic Start/Sleep（Electric vehicles are not supported this function）：
1.When the car is ignited, iCar Pro will automatically start
2.30 minutes after the car stalls, iCar Pro will automatically sleep
Vgate iCar Pro Specification:
Supply Voltage: 11.5V-15V
Supply Current: <200Ma
Standby Current: <30Ma (TONWON Pro = <3Ma)
Operating temperature: -40 ℃ - 85 ℃
Operating Humidity: 5% - 95% RH Non-Dewfall
Hardware version：V2.3
Supported systems：Android/IOS

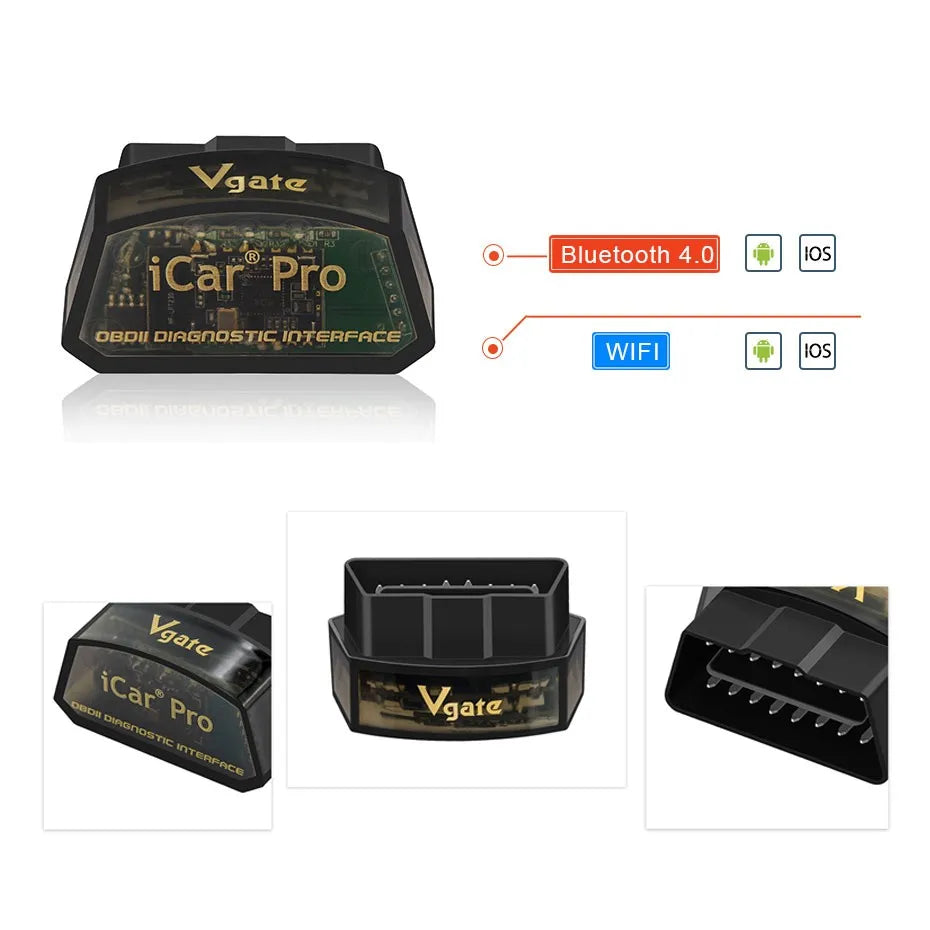

Connection method：BT4.0/WIFI
100% Original iCar Pro Connection Method：
SAE J1850 PWM (41.6 Kbaud)
SAE J1850 VPW (10.4 Kbaud)
ISO9141-2 (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)
SAE J1939 CAN (29bit ID, 250 * Kbaud)
USER1 CAN (11 * bit ID, 125 * Kbaud)
USER2 CAN (11 * bit ID, 50 * kbaud)
* Default Settings (User Adjustable)

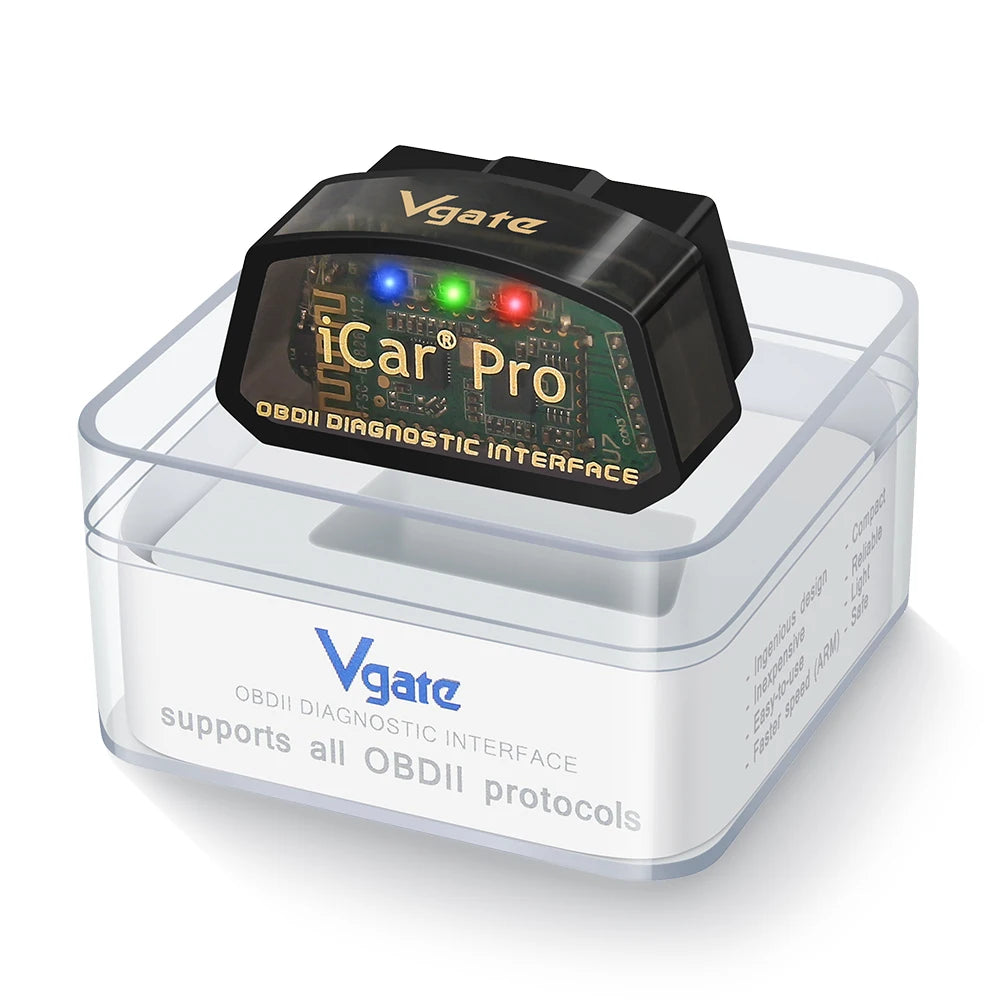

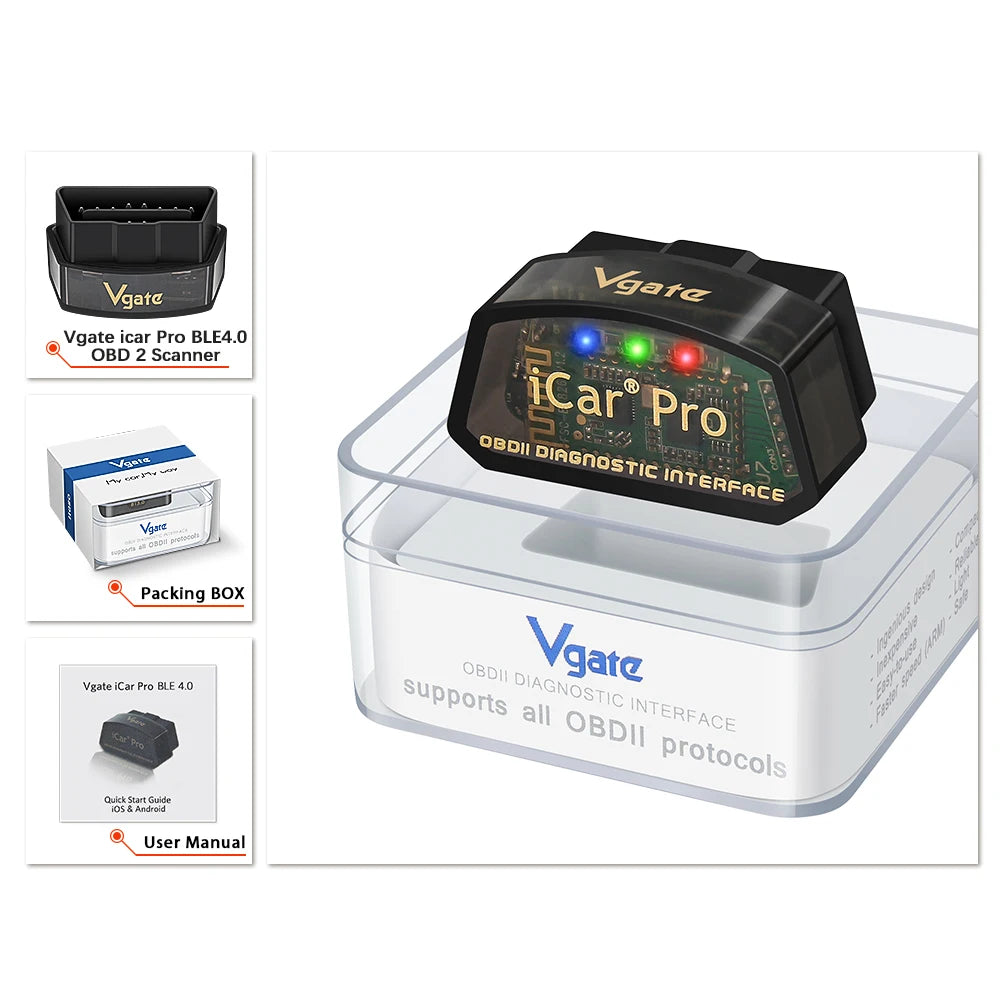

1 x Vgate iCar Pro OBDII
1 x User manual
